Products:

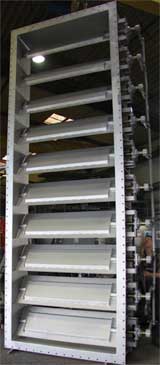

RBU ASK dampers
| Type: | Robust shut-off and modulation dampers with roller bearing on the drive side and maintenance-free slide bearing on the opposite side |
| Maximum pressure: | 200mbar |
| Use: | Shut off and modulation dampers |
| Operating temperature: | up to 500°C |
| Size: | DN1000 to DN3000 |
| Designs: | Welded construction, round and square, 1 or more wings opposed or regular closing |
| Sealing: | with or without metal sealing |
| Operation: | hand lever, electrical or pneumatic (flange as per DIN EN ISO 5211) |
| Assembly: | Flange as per DIN 24154 or per customer specification |
Illustrations
